The static balancing valve is designed for accurate flow regulation and hydraulic balancing in closed HVAC systems. It enables precise adjustment and verification of flow rates through integrated pressure test points, ensuring stable system performance and energy-efficient operation. With a wide size range and durable construction, the valve is suitable for commercial, industrial, and infrastructure applications.

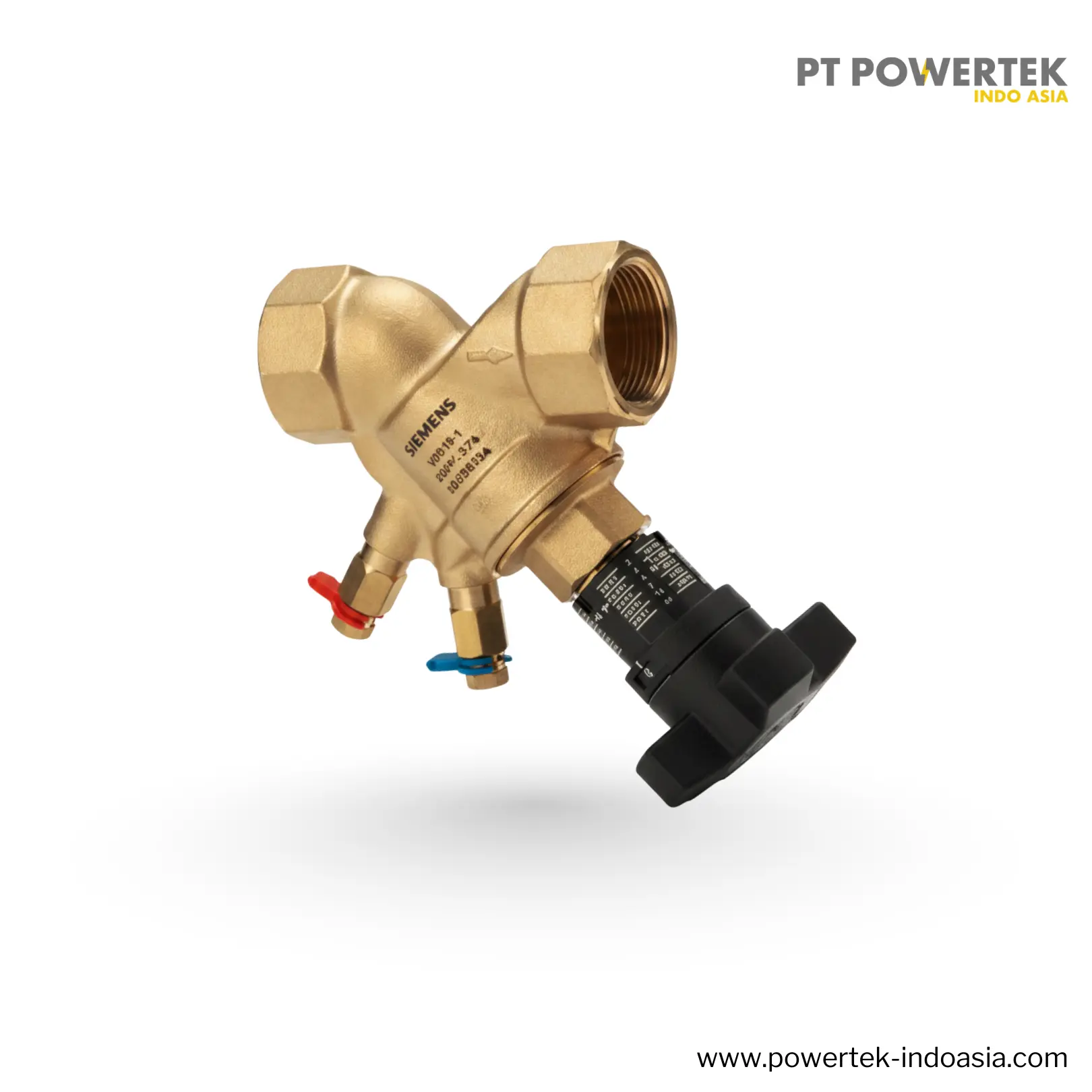

Static Balancing Valve
Category :
Valves, Balancing Valve
Brand :
Siemens
Product Information
- Size Range and Materials
- DN15 – DN50
- Brass body (Hpb59-1)
- DN65 – DN500
- Nodular cast iron body
- Flow Capacity: Nominal flow rate (kvs): 3.2 – 4180 m³/h
- Design and Functions
- Pressure test points (P/T) for differential pressure measurement
- Digital handwheel display for clear setting indication
- Flow locking function to secure balanced settings
- Tight shut-off design
- Designed for closed hydraulic circuits
Features and Benefits
- Precise flow control for static hydraulic balancing
- Enhances HVAC system stability and energy efficiency
- Built-in pressure test points for easy commissioning and verification
- Digital handwheel display for clear setting indication
- Locking function prevents unintended adjustment
- Durable construction for long-term reliable operation
- Suitable for small to large HVAC system capacities
System Integration
- Can be integrated with SITRANS F M flowmeters
- Enables accurate flow monitoring and performance verification
- Supports optimized operation in HVAC, water, district cooling, and utility systems
