The SITRANS FM MAG 5100 W is an electromagnetic flow sensor specifically designed for water-related applications such as groundwater, drinking water, wastewater, sewage, and sludge. Its robust construction and optimized design ensure reliable performance even in harsh and demanding environments.
SITRANS FM MAG 5100 W
Category :
Valves, Flow Meter/BTU Meter
Brand :
Siemens
Product Information
- Measuring range: 0 – 10 m/s
- Nominal size: DN 15 – DN 2000 (1″ – 78″)
- Accuracy: ±0.2% ±2.5 mm/s
- Protection class: IP68
- Max. operating pressure: 16 bar
- Ambient temperature: -40 to 70 °C
- Medium temperature: -10 to 70 °C
- Liner materials: EPDM, NBR hard rubber, Ebonite
- Electrodes: Hastelloy C-276 with integrated grounding
- Sensor body: Carbon steel with epoxy coating
Integration

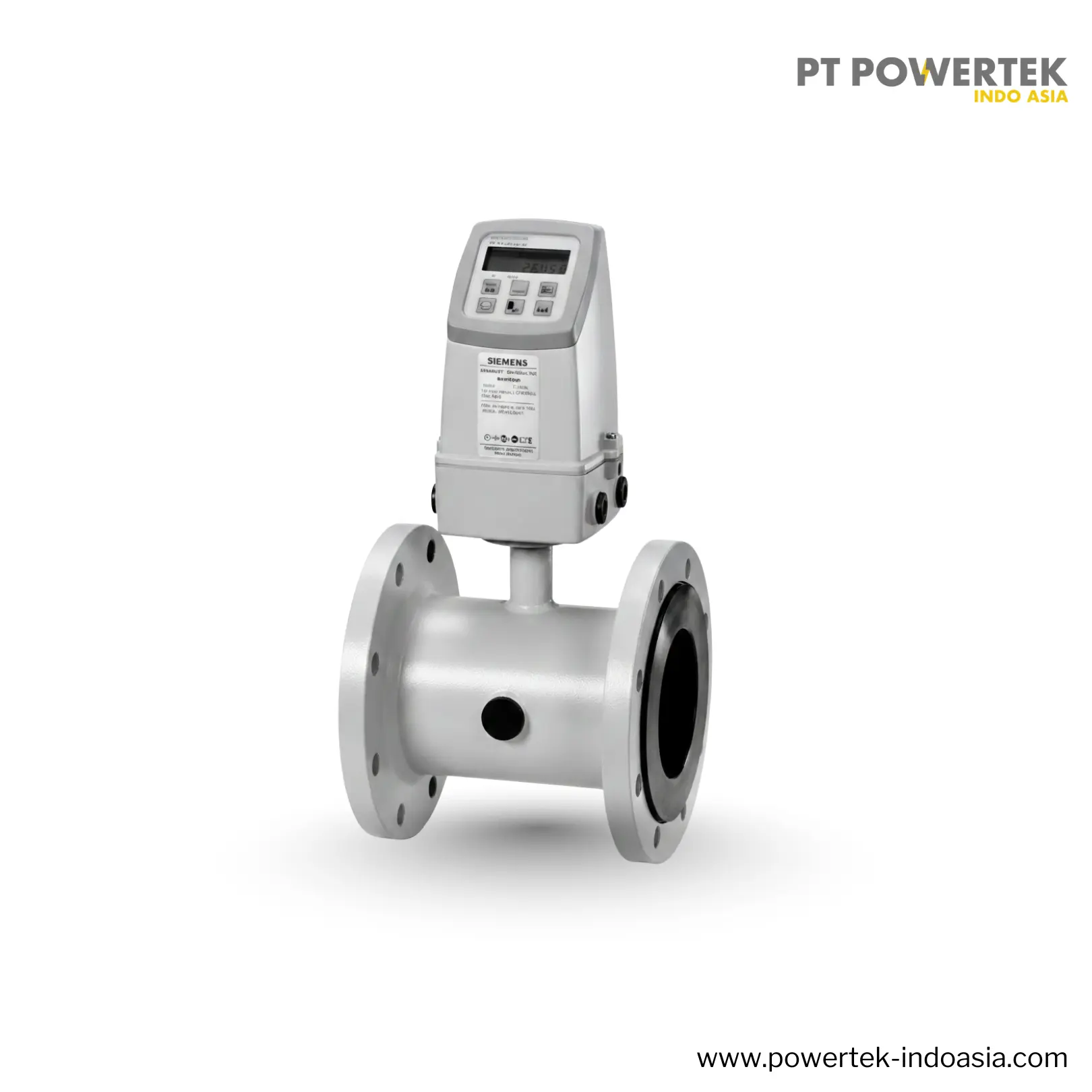

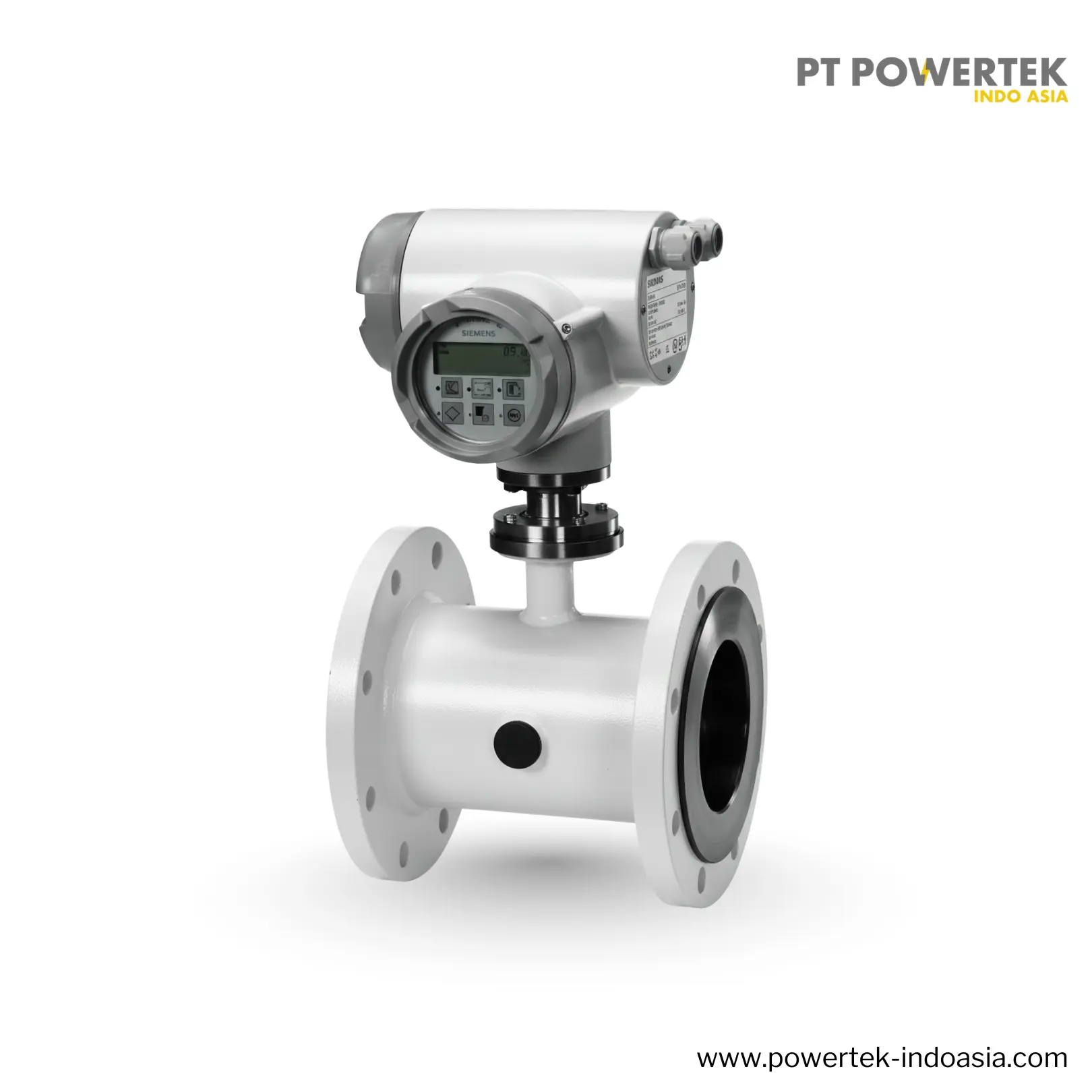

The complete flow meter consists of a flow sensor and an associated transmitter SITRANS FM MAG 5000, MAG 6000 or MAG 6000 I.
