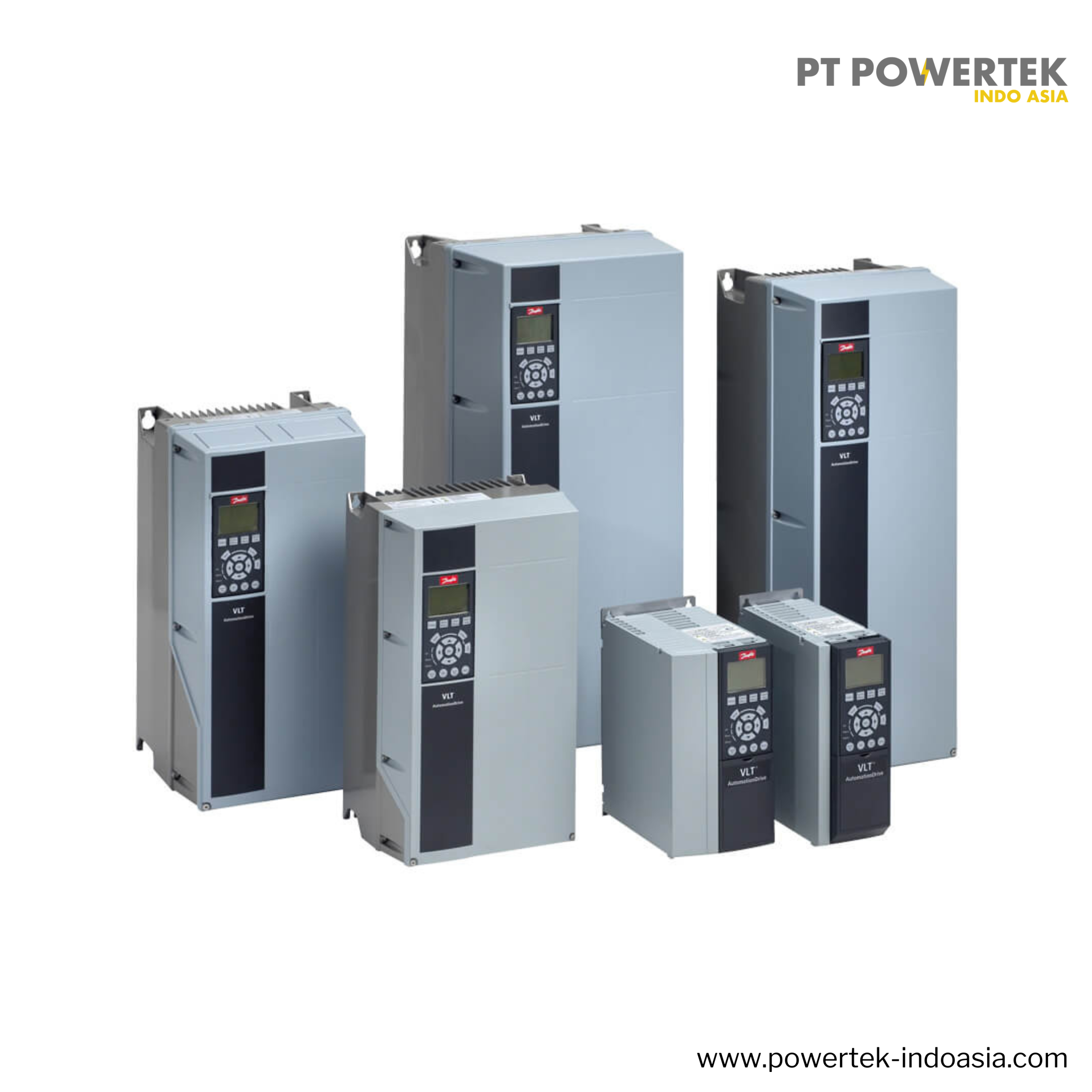

VLT® FC 302 Automation Drive

Supply Voltage and Power Range

• 3 x 200-240 V…0.25-37 kW
• 3 x 380-500 V…0.37 kW – 1.1 MW
• 3 x 525-600 V…0.75-75 kW
• 3 x 525-690 V…1.1 kW – 1.4 MW

Low Harmonic Drive

• 3 x 380-480 V…132-450 kW

12-pulse Drive

• 3 x 380-500 V…250 kW – 1 MW
• 3 x 525-690 V…250 kW – 1.4 MW

Standards

The VLT® AutomationDrive FC 302 is delivered as standard with the STO (Safe Torque Off) function in compliance with ISO 13849-1 PL d and SIL 2, according to IEC 61508/IEC 62061.

• Class 3C3 coated components for increased reliability in harsh environments (IEC 6072 1-3-3).

Features and Benefits

• Fits all motor technologies and fieldbus protocols: universally compatible
• Commissioning and upgrades are easy due to plug-in technology
• Back-channel cooling concept reduces energy costs, the size of the cooling system, and extends drive lifetime
• Automatic Motor Adaptation (AMA) for fast startup
• Automatic Energy Optimization (AEO) for high system efficiency
• Safe stop and Safe Torque Off ensure safe operation of the drive
• Integrated Motion Controller (IMC) for automation made easy
• Condition-based monitoring (CBM) is integrated to achieve maximum uptime in your operations
• VLT® Motion Control Tool MCT 10 offers a customized commissioning experience
• Explore MyDrive® Suite for free software tools and downloads
• ‘Ruggedized’ design reduces the potential negative effects of vibration
• DrivePro® Life Cycle Services proactively improve uptime in your plant
• VLT® FlexConcept improves efficiency while reducing complexity in your system.

Warranty

The standard warranty period is 12 months after commissioning or 18 months after delivery, with the option for an extended warranty.
