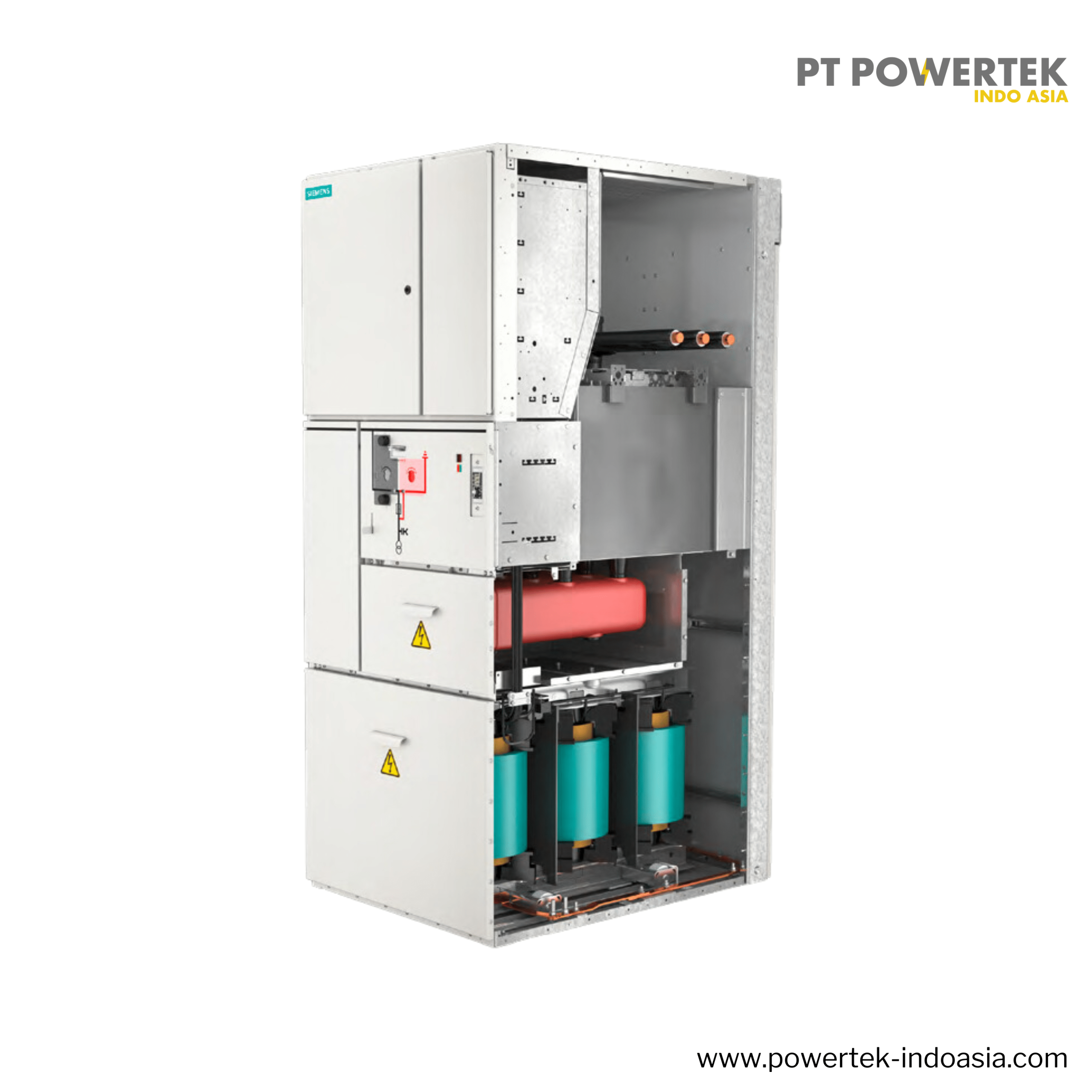

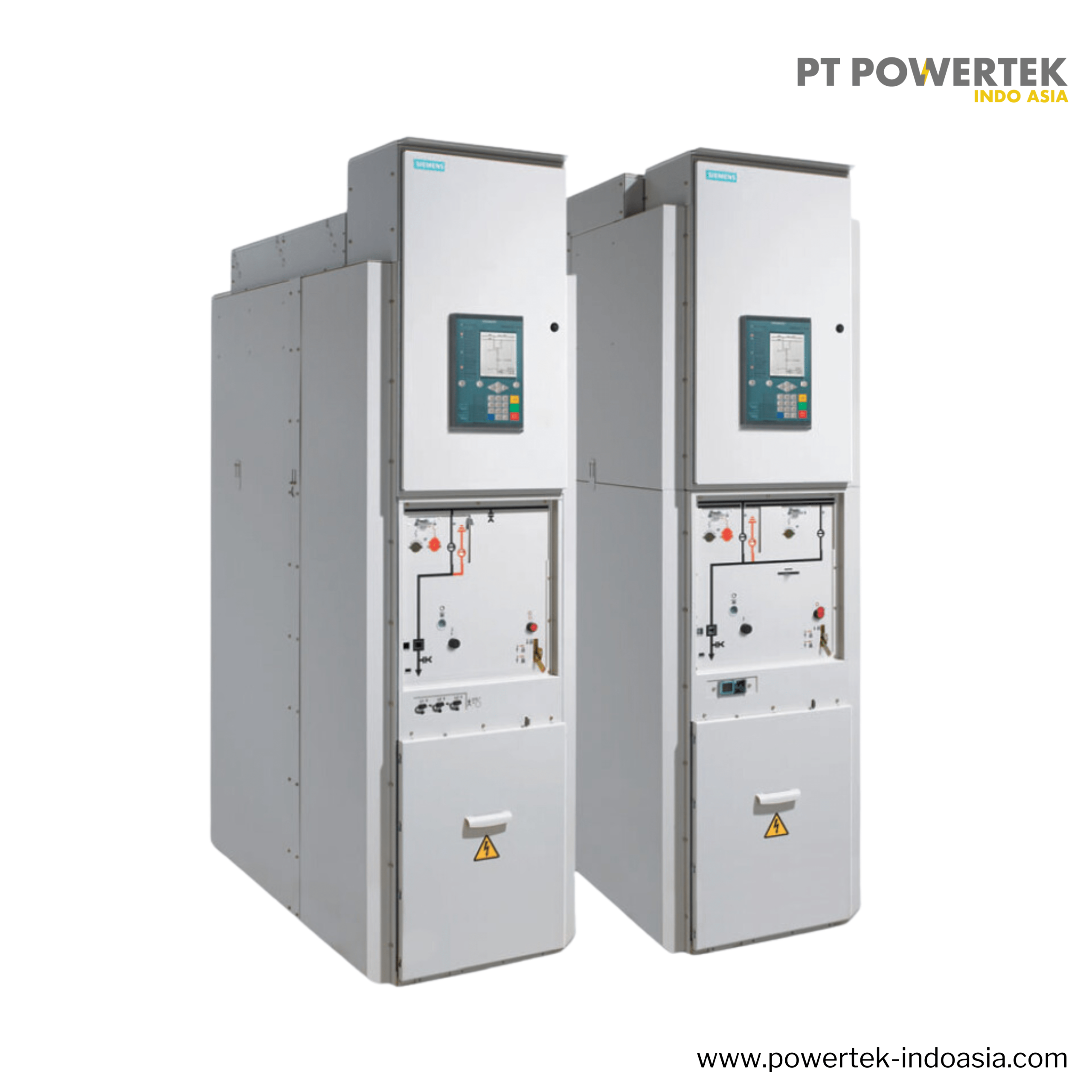

The factory-assembled, type-tested Gas Insulated Switchgear with a vacuum circuit breaker is designed for a high degree of independence in all applications. It is suitable for use in challenging ambient conditions, including saline air, high humidity, dust, and condensation.
Product Information
Specification
- Rated voltage: Up to 40.5 kV
- Rated current: Up to 2500 A
- Rated short circuit: Up to 31.5kA/3s
Standards
Designing switchgear for indoor installation according to IEC 62271-200.
Feature and Benefits
- Single busbar, partition class PM, LSC2
- Independence from environment and climate
- Maintenance-free
- Compact design to optimize room dimensions
- High reliability and safety
- Insulated cable connection
Warranty
The standard warranty period is 12 months after commissioning or 18 months after delivery, with the option for an extended warranty.
